What It Is

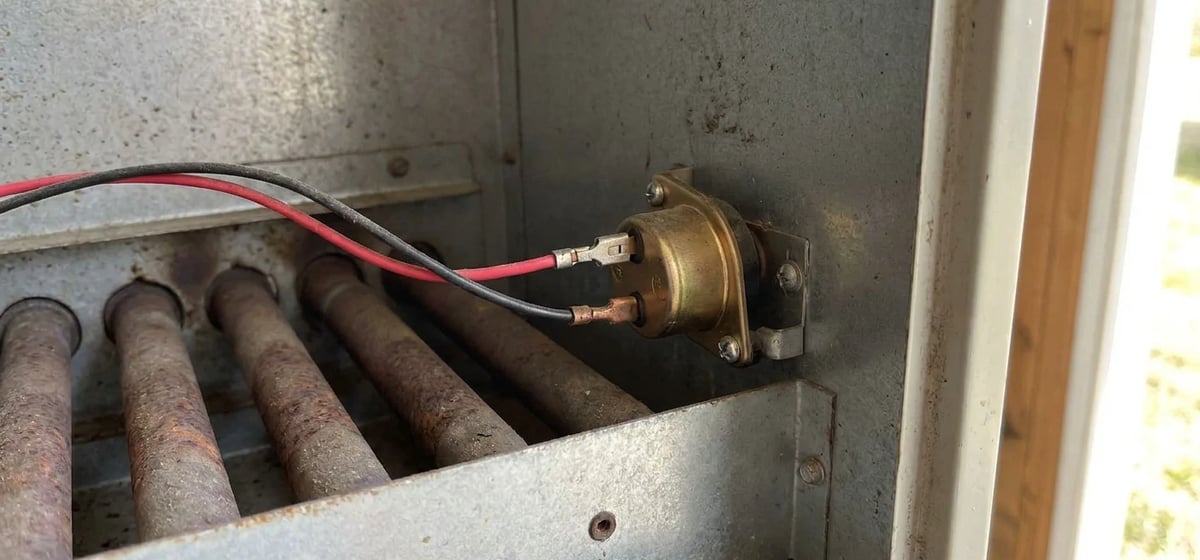

A flame rollout switch is a small but critical safety part inside your gas furnace. It sits right outside the combustion chamber near the burners. When your furnace runs normally, the flames stay safely inside the chamber. The heat goes into the house, and the exhaust gases go straight up the chimney or vent pipe. But things don't always work perfectly. If something blocks the exhaust path, those flames have nowhere to go. They will literally roll backward out of the front of the furnace. This switch senses that dangerous heat and instantly shuts off the gas supply. It's a simple temperature sensor with a very important job.
Why It Matters To You
This tiny switch protects your home from a massive fire hazard. When flames escape the burner area, they quickly melt wires, scorch the outside of the furnace cabinet, and can ignite nearby walls or boxes. A flame rollout also means dangerous exhaust gases are spilling into your basement or utility room instead of venting outside. These gases contain deadly carbon monoxide. Because of this, a tripped switch is one of the most serious Home Emergencies you can face with your heating system. You can't ignore it, and you should never try to bypass it.
What Causes A Flame Rollout
The switch itself rarely fails on its own. When it trips, it's almost always doing its job because of a bigger problem. Here are the most common reasons flames roll backward out of a furnace:
- Blocked exhaust vent: Bird nests, dead leaves, or a collapsed flue pipe trap the heat inside the system.
- Cracked heat exchanger: A crack allows high pressure air from the blower fan to push back against the flames.
- Severe soot buildup: A lack of routine maintenance causes soot to clog the burner area and block the airflow.
- Poor draft: Not enough fresh air gets into your utility room to allow the furnace to breathe and burn gas properly.
What To Watch For
If your furnace turns on for just a few seconds and then shuts down completely, a tripped rollout switch might be the culprit. You'll often notice physical signs of the problem. Look for scorch marks or peeling paint on the front of the furnace cabinet. Sometimes you'll smell burnt plastic or melting wires when the heat tries to kick on. If you take the front metal cover off your furnace, you might see a small button popped out on a sensor near the burner tubes.
Repair And Replacement Costs
Replacing a bad switch is usually a fast and affordable job. You can expect to pay $100 to $250 for a professional to install a new one. However, the switch is rarely the actual problem. The real cost depends on why the flames rolled out in the first place. Clearing a bird nest from a chimney vent might cost $150 to $300. If you have a cracked heat exchanger, you might need an entirely new furnace. That major repair can run anywhere from $1,500 to $5,000 depending on the model you choose. Keep in mind that all these price ranges vary by location and the contractor you hire. If you're facing a massive repair bill, you might want to review HVAC & Climate Control basics and check What Home Repairs Cost before you decide whether to fix the old unit or buy a new one.
